Jaw Crusher vs Cone Crusher: Performance Showdown – How to Choose the Right One for Your Needs

When it comes to crushing equipment, jaw crushers and cone crushers are two of the most widely used machines in the mining, construction, and aggregate industries. Both are essential for reducing large rocks into smaller, more manageable sizes, but they serve different purposes and excel in different scenarios. In this article, we’ll dive deep into the world of crushing machines, exploring what a cone crusher is, how it works, its advantages and disadvantages, and how it compares to a jaw crusher. By the end, you’ll have a clear understanding of which machine is the right fit for your needs.

What is a Cone Crusher?

A cone crusher is a type of secondary or tertiary crusher that uses a rotating mantle to break down rocks into smaller pieces. It is designed to handle hard and abrasive materials, making it ideal for applications like mining and high - volume aggregate production. Cone crushers are known for their ability to produce finely crushed materials with a uniform particle size.

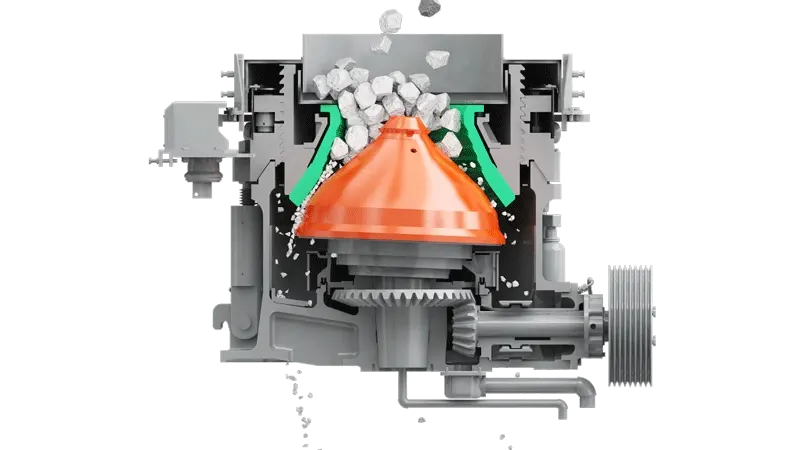

How Does a Cone Crusher Work?

The cone crusher operates by compressing materials between a stationary concave (bowl liner) and a rotating mantle. As the mantle gyrates, it crushes the rocks against the concave, breaking them into smaller pieces. The crushed material is then discharged through the bottom of the machine. Cone crushers are highly efficient and can handle a wide range of materials, from soft to extremely hard.

Cone Crusher Advantages and Disadvantages

Advantages:

High Efficiency: Cone crushers are capable of producing a high volume of finely crushed material.

Uniform Particle Size: They produce consistent output, which is ideal for producing high - quality aggregates.

Versatility: Suitable for secondary and tertiary crushing stages.

Low Operating Costs: With proper maintenance, cone crushers can operate efficiently for years.

Disadvantages:

Higher Initial Cost: Cone crushers are generally more expensive than jaw crushers.

Complex Maintenance: Regular maintenance is required to ensure optimal performance.

Not Ideal for Primary Crushing: Cone crushers are better suited for secondary or tertiary crushing rather than primary crushing.

Cone Crusher Maintenance

Proper maintenance is crucial for maximizing the lifespan and performance of a cone crusher.

Key maintenance tasks include:

Regular Wear Part Checks and Replacements: Regularly check and replace wear parts like the mantle and concave. For example, if you notice abnormal noise during the operation of the cone crusher, it might be a sign that the mantle or concave is severely worn. Use a measuring tool to check the wear degree of these parts. If the wear exceeds the specified limit, replace them immediately.

Lubrication: Ensure proper lubrication of all moving parts. Different parts of the cone crusher may require different types of lubricants. For the eccentric shaft, a high - quality anti - wear lubricant should be used. Check the lubricant level regularly according to the equipment manual, and change the lubricant at the recommended intervals, usually every 3 - 6 months depending on the operating conditions.

Performance Monitoring and Adjustment: Monitor the crusher’s performance and adjust settings as needed. Keep an eye on parameters such as the particle size of the output, production capacity, and power consumption. If the output particle size becomes larger than expected, it may be necessary to adjust the CSS (Closed - Side Setting) through the hydraulic system.

Cleanliness: Keep the machine clean to prevent dust and debris buildup. Use a compressed air gun or a vacuum cleaner to clean the interior and exterior of the crusher regularly, especially around the feed hopper and discharge area.

Common Troubleshooting

Low production capacity: If the production capacity of the cone crusher decreases, first check if there is a blockage in the feed hopper or the discharge chute. Clear any obstructions if found. Also, check the wear of the mantle and concave. Worn - out parts may lead to inefficient crushing. In addition, ensure that the hydraulic system for adjusting the CSS is working properly, as an incorrect CSS setting can also affect production capacity.

Excessive vibration: Excessive vibration may be caused by unbalanced components. Check if the mantle is evenly worn. If one side of the mantle is worn more than the other, it can cause vibration. Also, check the foundation of the crusher to make sure it is stable and firmly fixed. Tighten any loose bolts or nuts on the machine.

Cone Crusher Structure

A cone crusher consists of several key components:

Mantle: The rotating part that crushes the material.

Concave: The stationary liner that the mantle crushes against.

Eccentric Assembly: Drives the gyrating motion of the mantle.

Hydraulic System: Allows for easy adjustment of the crusher settings.

Feed Hopper: Where the material is loaded into the crusher.

What is a Jaw Crusher?

A jaw crusher is a primary crusher used to reduce large rocks into smaller pieces. It is commonly used in mining, quarrying, and recycling applications. Jaw crushers are known for their simplicity, reliability, and ability to handle a wide range of materials, including hard and abrasive rocks.

How Does a Jaw Crusher Work?

A jaw crusher operates by compressing material between a fixed jaw and a moving jaw. The moving jaw exerts force on the rock, breaking it into smaller pieces. The crushed material is then discharged through the bottom of the machine. Jaw crushers are ideal for primary crushing and can handle large feed sizes.

Jaw Crusher Dimensions, Size, and Capacity

Jaw crushers come in various sizes and capacities to suit different applications. Common dimensions include feed opening sizes ranging from 600 mm to 1500 mm, with capacities from 50 t/h to 800 t/h. The size and capacity of a jaw crusher depend on factors like the hardness of the material and the desired output size.

Jaw Crusher Working Principle

The working principle of a jaw crusher is straightforward:

Material is fed into the crusher through the feed opening.
The moving jaw compresses the material against the fixed jaw.
The crushed material is discharged through the bottom.

Jaw Crusher Advantages and Disadvantages

Advantages:

Simple Design: Easy to operate and maintain.

High Capacity: Can handle large feed sizes and high volumes of material.

Cost - Effective: Lower initial cost compared to cone crushers.

Versatility: Suitable for a wide range of materials and applications.

Disadvantages:

Limited Reduction Ratio: Not as effective as cone crushers for producing finely crushed material.

Higher Wear on Jaw Plates: Requires regular replacement of wear parts.

Less Uniform Output: The output size may vary compared to cone crushers.

Jaw Crusher Maintenance

Key maintenance tasks for jaw crushers are as follows:

Jaw Plate Inspection and Replacement: Regularly check the wear of the jaw plates. Since jaw crushers are used for primary crushing and deal with large - sized materials, the jaw plates are prone to wear. Use a visual inspection to check for cracks or uneven wear. Replace the jaw plates when the wear reaches a certain level, usually when the thickness of the jaw plate is reduced by 30 - 50% of the original thickness.

Bearing Lubrication: The bearings in a jaw crusher need proper lubrication. Use a high - temperature - resistant lubricant suitable for the bearings. Check the lubricant level once a week during normal operation, and replace the lubricant every 6 - 12 months.

Eccentric Shaft and Flywheel Maintenance: Inspect the eccentric shaft and flywheel for any signs of looseness or abnormal wear. Tighten the bolts connecting the eccentric shaft and the flywheel regularly. Check for any cracks or deformations on the eccentric shaft. If any issues are found, repair or replace the components immediately.

Common Troubleshooting

Jamming in the Crushing Chamber: If the jaw crusher jams, first stop the machine immediately. Check if there are any oversized materials or foreign objects in the crushing chamber. Remove them carefully. Adjust the feeding size to ensure it meets the equipment's requirements.

Excessive Noise: Excessive noise may indicate problems such as loose components or worn - out bearings. Check all the bolts and nuts to ensure they are tightened. If the noise is coming from the bearings, check the lubrication and the condition of the bearings. Replace the bearings if necessary.

Jaw Crusher vs Cone Crusher: How to Choose?

Choosing between a jaw crusher and a cone crusher depends on your specific needs:

Choose a Jaw Crusher If: You need a primary crusher for large feed sizes and high - capacity crushing. It’s ideal for applications like mining, quarrying, and recycling.

Choose a Cone Crusher If: You need a secondary or tertiary crusher for producing finely crushed material with a uniform particle size. It’s perfect for high - volume aggregate production.

Jaw Rock Crusher for Sale vs. Cone Crusher for Sale

If you’re considering purchasing or renting a crusher, here are some factors to keep in mind:

Jaw Rock Crusher for Sale: Ideal for primary crushing and handling large feed sizes. Look for models with high capacity and low maintenance requirements.

Cone Crusher for Sale: Perfect for secondary or tertiary crushing and producing high - quality aggregates. Consider models with advanced features like hydraulic adjustment and automated control systems.

Industry Trends and Their Impact

Intelligent Trend

In recent years, the crusher industry has been moving towards intelligence. Intelligent sensors are being installed in both jaw crushers and cone crushers. These sensors can monitor various parameters in real - time, such as the wear of components, the temperature of bearings, and the production capacity. For jaw crushers, intelligent control systems can adjust the feeding speed according to the material hardness and the load of the machine, improving production efficiency and reducing wear. For cone crushers, intelligent systems can optimize the CSS setting automatically based on the input material and the desired output size, ensuring a more uniform product.

Energy - Saving and Environmental Protection Trend

With the increasing global emphasis on environmental protection, energy - saving and low - emission crushers are becoming more popular. New - type jaw crushers and cone crushers are being designed with more efficient crushing chambers and power - saving motors. For example, some cone crushers use advanced hydraulic systems that consume less energy during operation. In addition, dust - suppression technologies are being improved to reduce the environmental impact of dust emissions during the crushing process.

Automation Trend

Automation is another significant trend. Automated feeding and discharging systems are being integrated into crushers. In the case of jaw crushers, automated feeding can ensure a stable supply of materials, reducing the risk of jamming. For cone crushers, automated control over the entire crushing process, from material input to product output, can improve production accuracy and reduce the need for manual intervention, thus saving labor costs.

In conclusion, both jaw crushers and cone crushers are essential tools in the crushing industry, each with its own strengths and weaknesses. By understanding their working principles, advantages, maintenance requirements, and the latest industry trends, you can make an informed decision about which machine is best suited for your needs. Whether you’re looking for a jaw rock crusher for sale or a cone crusher for sale, choosing the right equipment will ensure efficient and cost - effective operations.

If you’re still unsure, consider consulting with a crushing equipment expert to help you make the best choice for your specific application. Happy crushing!
